PROCESS CONTROL & IO MODULES IoT

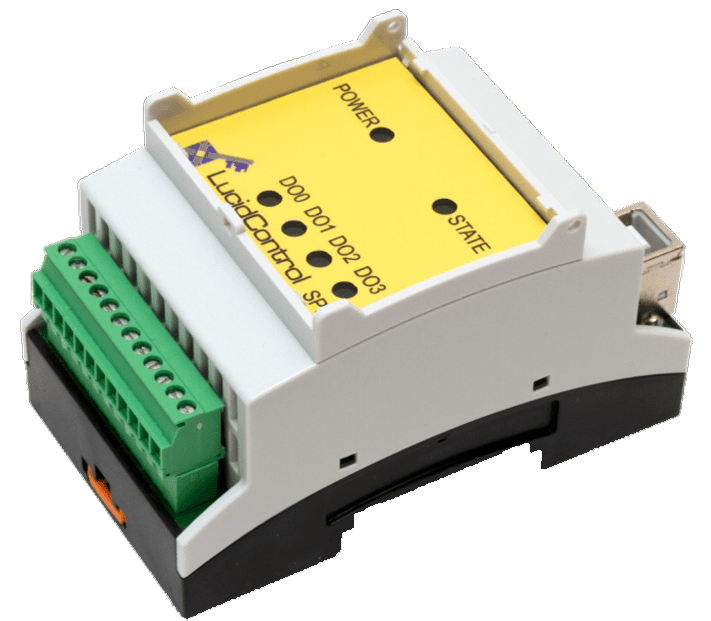

IoT universal programmable USB IO modules

Digital, Analogue, Temperature and PWM functions
Digital Input, 5, 10 & 24V
Digital Output, power relay SPDT and solid state up to 30V and 0.75A
Analogue Input, voltage 0 to 5, 0 to 10, -10 to 10, -24 to 24 and current 0 to 20mA
Analogue Output, voltage 0 to 5, 0 to 10, -10 to 10, -12 to 12, -24 to 24 and current 0 to 20mA, 4 to 20
TEMPERATURE RTD Input, 2 wire, Pt 100 and Pt1000

Development Software

API for .NET, Java® and Python
Compatible with popular Raspberry Pi® and Beaglebone Black
Works with Windows® and Linux
National Instruments LabVIEW

Applications

• Building services
• Control engineering
• Energy management
• Logging and Monitoring
• Scientific and Prototyping
• Educational and Hobbyists

Analogue Input Module User-Manual-LucidControl-AI4.pdf

Analogue Output Module User-Manual-LucidControl-AO4.pdf

Digital Input Module User-Manual-LucidControl-DI4.pdf

Digital Output Module User-Manual-LucidControl-DO4.pdf

Products Overview LucidControl-Linecard.pdf

Temperature RTD Input Module User-Manual-LucidControl-RT4

User-Manual-LucidControl.pdf

Support & Software Downloads
Microsoft Windows®
For Microsoft Windows® a INF must be provided to the system during installation of a LucidControl module. This text based file contains descriptive information for the CDC driver included in the operating system.

https://www.lucid-control.com/wp-content/uploads/Software/CDC_Inf/LucidIo_CDC_INF.zip

The LucidIo Control Command Line Application (Binary, Revision 1.4.1)

https://www.lucid-control.com/wp-content/uploads/Software/LucidIoCtrl/1.4.1/Windows/LucidIoCtrl_1_4_1_Windows.zip

Linux
The LucidIo Control Command Line Application (Binary, Revision 1.4.1)

https://www.lucid-control.com/wp-content/uploads/Software/LucidIoCtrl/1.4.1/Linux/LucidIoCtrl_1_4_1_Linux.zip

National Instruments LabVIEW
Example Project showing how to use LucidControl USB IO Modules with National Instruments LabVIEW.

https://www.lucid-control.com/wp-content/uploads/Software/LabVIEW/LabVIEWExampleAO4.zip

Raspberry Pi® and Beagle Bone Black
The LucidIo Control Command Line Application (Binary, Revision 1.4.1)
This binary is compatible with armhf (Hard Point ABI) architecture and works with Raspbian (RPi) and Wheezy (BBB)
https://www.lucid-control.com/wp-content/uploads/Software/LucidIoCtrl/1.4.1/RPi/LucidIoCtrl_1_4_1_RPi.zip

Java® API JLucidIo
LucidIo Control Java Application Programming Interface Revision 1.3.1

https://www.lucid-control.com/wp-content/uploads/Software/LucidControlAPI/JLucidIo/1.3.1/JLucidIoApi_1_3_1.zip

LucidIo Control Java Application Programming Examples
The archive contains a runnable applicationn for Microsoft Windows including the source code.
The application uses SWT (Standard Widget Toolkit) which must be installed on your system.
https://www.lucid-control.com/wp-content/uploads/2013/06/do4basic_1_1.zip

.Net API
LucidIo Control .Net Application Programming Interface Revision 1.5.0

https://www.lucid-control.com/wp-content/uploads/Software/LucidControlAPI/dotNetLucidIo/Rev1.5.0/dotNetLucidIoApi_1_5_0.zip

https://www.lucid-control.com/wp-content/uploads/Software/LucidControlAPI/dotNetLucidIo/Rev1.5.0/dotNetLucidIoApi_1_5_0.zip

Python USB IO API – pyLucidIo
LucidIo Control Python Application Programming Interface Revision 2.1 compatible with Python 2.7 and 3.x
This module depends on pySerial for the serial communication interface.
https://www.lucid-control.com/wp-content/uploads/Software/LucidControlAPI/PyLucidIo/2.1/pyLucidIo-2.1.zip

https://www.lucid-control.com/wp-content/uploads/Software/LucidControlAPI/PyLucidIo/PythonExamples.zip
